| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | EVERSUN |
| 인증: | ISO,CE |
| 모델 번호: | ZKJ |
| 최소 주문 수량: | 1 세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 목재 케이스 |
| 배달 시간: | 7-15 일 이내에 |
| 지불 조건: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| 공급 능력: | 5000 세트/년 |
| 기능: | 자료를 전달합니다 | 용법: | podwer, 과립 운반 |
|---|---|---|---|
| 보증: | 1 년 | 속도: | 조절할 수 있는 |
| 창고 볼륨: | 사용자 정의 가능 | 전달 방식: | 부정적인 압력 운반 |
| 특징: | 먼지가없고 저음이 적고 청소하기 쉽습니다 | 재료: | 스테인레스 스틸 |
| 제어: | PLC 제어장치 / 제어 상자 | 진공 소스: | 진공 펌프, 뿌리 팬 |
| 제품 유형: | 컨베이어 시스템 | 설치: | 쉬운 설치 |

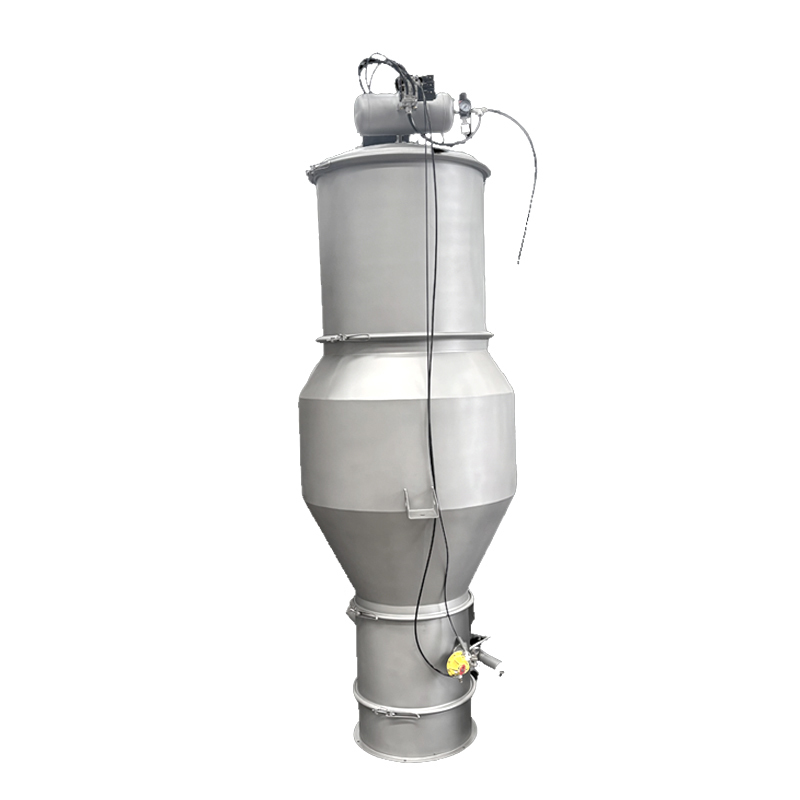

Product description
Continuous vacuum feeding machine is a highly efficient and automated material conveying equipment. It relies on vacuum negative pressure suction to achieve continuous material transportation. It is suitable for various materials such as particles and powders and is widely used in food, pharmaceutical, chemical and other industries. It does not require manual feeding, can avoid material dust and pollution, and can be flexibly connected to various equipment on the production line. It occupies a small area, has low energy consumption, and greatly improves the conveying efficiency and cleanliness of the production environment.
Working principle
The working process of the continuous vacuum feeder: The vacuum pump operates to create a negative pressure in the pipeline and the separation chamber, drawing the material from the source and transporting it with the airflow into the separation chamber. Inside the chamber, the filter separates the material from the air, with the air being discharged and the material gathering by gravity. The material is continuously discharged to the downstream equipment through the unloading mechanism. The entire process maintains a stable negative pressure, achieving continuous feeding.
Product features
1. High efficiency: Continuous and uninterrupted transportation, controllable transportation volume, suitable for continuous operation of production lines.
2. Clean and safe: Closed transportation without dust emission or pollution, reduces manual contact, and lowers labor intensity and safety risks.
3. Strong adaptability: Compatible with various materials such as powders and particles, the pipeline can be flexibly arranged, suitable for different scenarios.
4. Low cost: Energy consumption is controllable, the structure is simple and easy to maintain, reducing operation and maintenance costs and downtime costs.
5. Easy integration: Can be linked with upstream and downstream equipment to achieve intelligent control, improving the automation level of the production line.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |
Product details
Production line diagram

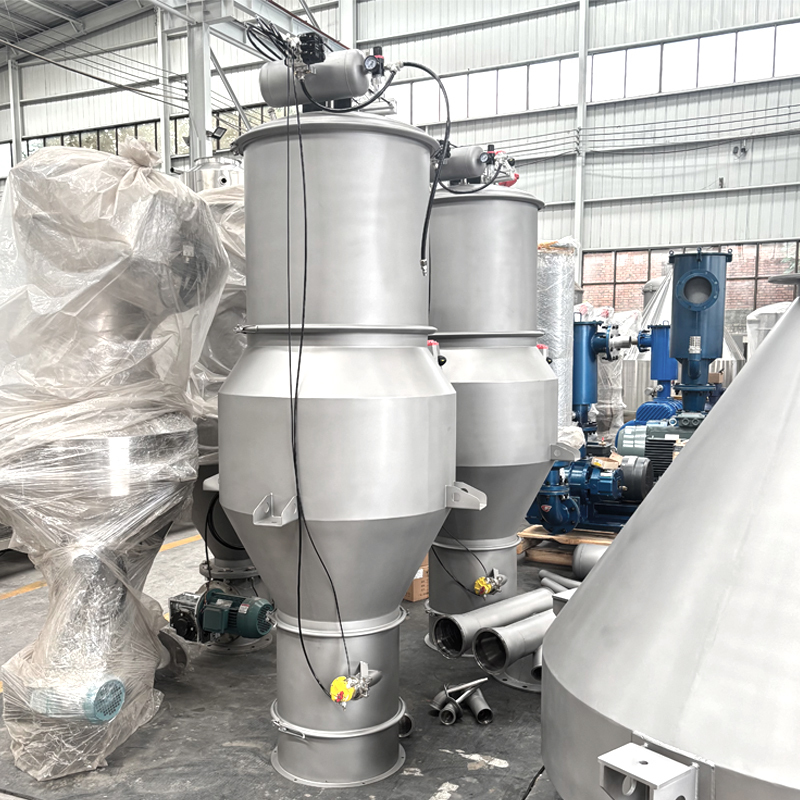

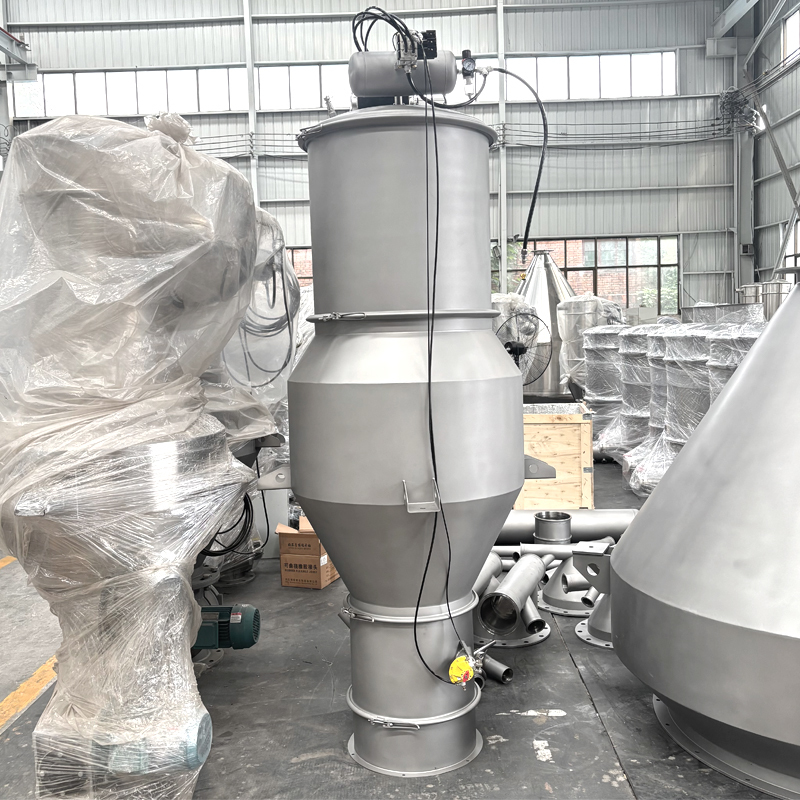

Product shows
Application
Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,
chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
