| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | EVERSUN |
| 인증: | ISO,CE |
| 모델 번호: | EQLS |
| 최소 주문 수량: | 1 세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 목재 케이스 |
| 배달 시간: | 7-15 일 이내에 |
| 지불 조건: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| 공급 능력: | 5000 세트/년 |
| 특징: | 높은 정밀도 | 운영 원리: | 원심력 |
|---|---|---|---|
| 스크린 튜브: | 스테인레스 스틸 스크린 튜브 | 유형: | 오토매틱 |
| 모터 파워: | 0.25-3 kW | 전압: | 220V/380V/415V/440V |
| 적합한 재료: | 화학, 식품, 제약, 야금, 건축 자재 등 | 화면 메쉬: | 5~500 마일 |
| 재료: | 스테인레스 스틸 | 표면 처리: | 경면 가공 / 샌드 브라스팅 |
| 전원: | 전기 같은 | 특징: | 고효율, 저소음, 간편한 청소 |
| 소음 수준: | 낮은 | 애플리케이션: | 입자 분리 |
Product description

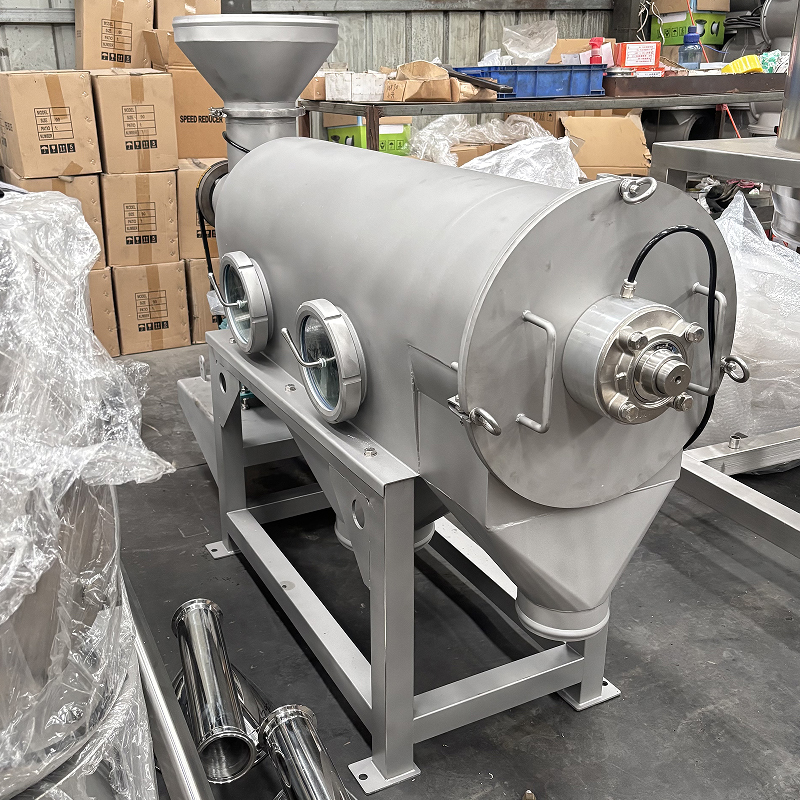

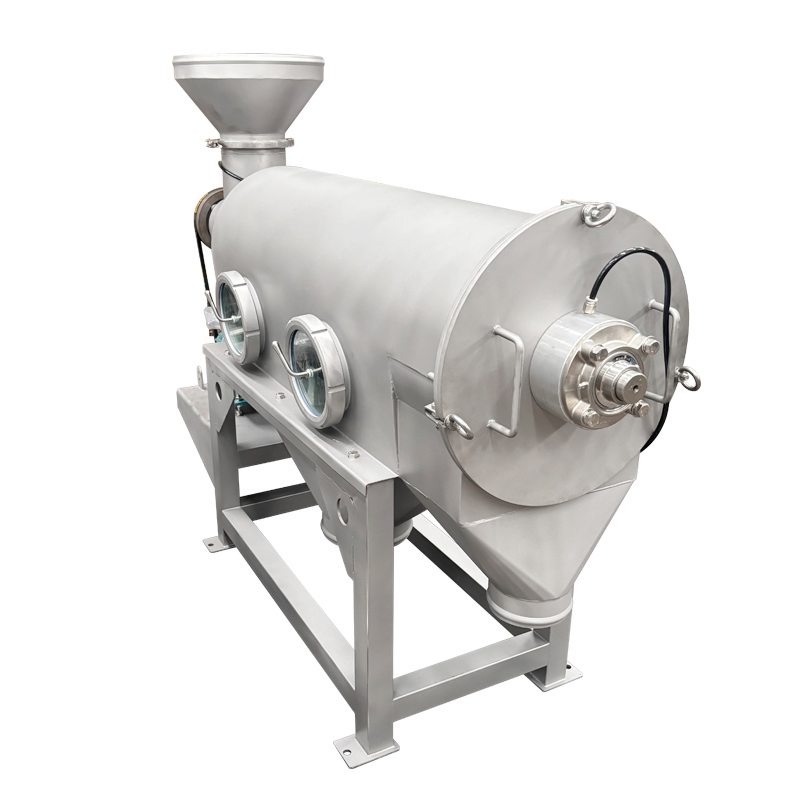

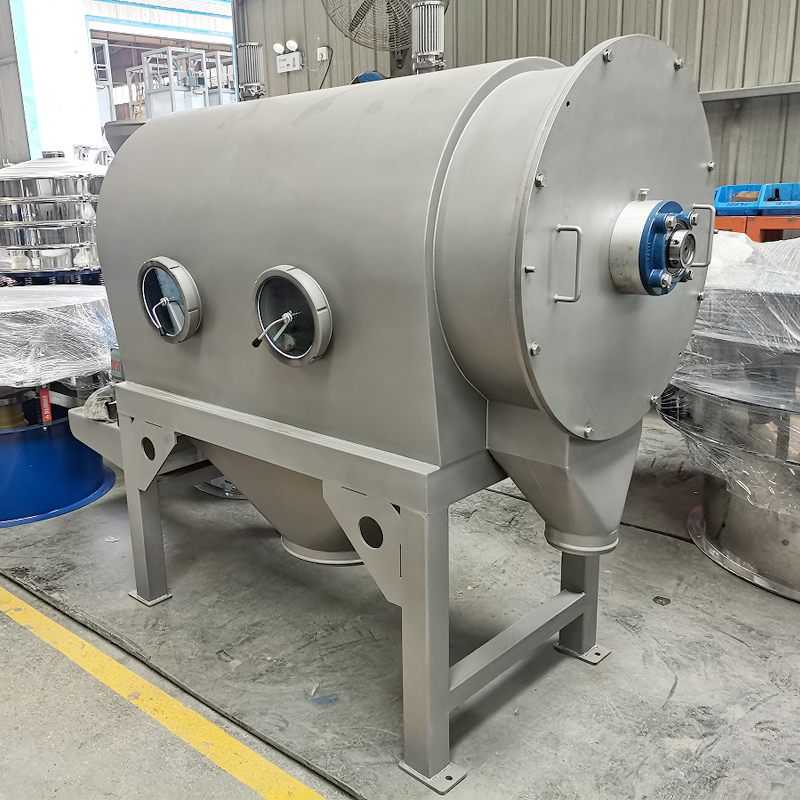

The airflow sieve is a precise screening equipment specially designed for powders, micro-particles and other easily agglomerating materials. Its core components include the sieve cylinder, the fan wheel and the fan.
It is suitable for various materials such as flour and chemical powders, featuring high screening efficiency, high precision, and no dust pollution. It can also effectively prevent material blockage of the screen mesh, and is widely used in industries like food, chemical, and new energy, meeting the material classification requirements in the precise production of various fields.
Working principle
The working principle of the air flow sieve is based on the synergy of air kinetic energy and mechanical force: After the materials enter the sieve chamber through the feeding system, the air flow generated by the fan will cause the materials to move in a suspended state; at the same time, the fan wheel in the sieve chamber rotates at high speed, generating centrifugal force. Under the combined action of these two forces, the fine particles that meet the sieve separation requirements will smoothly pass through the sieve holes of the sieve cylinder and enter the collection system with the air flow; while the larger impurities or coarse particles cannot pass through the sieve and are pushed by the fan wheel to the discharge port and are finally discharged, thus completing the fine classification and separation of the materials.
Product characteristics
1. Efficient and precise screening, suitable for cohesive materials;
2. Closed operation without dust, environmentally friendly and reduces material waste;
3. Good anti-blocking performance, capable of continuous and stable operation;
4. Wide application range, meeting the needs of multiple industries.
Application
Chemical industry: can be used for screening of various chemical raw materials, such as plastic particles, rubber powder, paint pigments, fertilizers, activated carbon, etc. For example, in the production of plastics, airflow screens can grade plastic particles to ensure uniform product size and improve product quality.
Food industry: Suitable for screening of flour, starch, milk powder, powdered sugar, condiments, food additives and other materials. Taking flour production as an example, the airflow screen can remove impurities and coarse particles in flour to ensure the fineness and quality of flour.
Pharmaceutical industry: It has good screening effect for pharmaceutical intermediates, raw materials, pharmaceutical excipients, Chinese medicine powder, etc. For example, in the pharmaceutical process, the airflow screen can screen the drug powder into different particle sizes, which is convenient for the production of subsequent preparations and ensures the stability and effectiveness of the drug.
Mining: It can be used for the screening of metal mineral powder and non-metal mineral powder, such as quartz sand, kaolin, graphite powder, aluminum powder, etc. In the processing of kaolin, the air flow screen can remove the coarse particles and impurities, and improve the purity and whiteness of kaolin.
Other industries: Can also be used in abrasives, refractories, electronic materials, 3D printing materials and other fields. For example, in the production of 3D printing materials, the airflow screen can accurately screen metal powder or polymer material powder to meet the strict requirements of 3D printing for material particle size.
| Model | Screen cage size(mm) (diameter*length) |
Screen material | Structure material | Mesh size | Power (kw) |
| EQLS-18065 | 180mm*650mm | Stainless steel or Nylon screen |
Q235A | ≤1000 | 2.2 |
| SUS304 | |||||
| EQLS-30010 | 300mm*1000mm | Q235A | ≤1000 | 4 | |
| SUS304 | |||||
| EQLS-50013 | 500mm*1300mm | Q235A | ≤1000 | 5 | |
| SUS304 | |||||
| Machine can be customized based on your need | |||||
