| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | EVERSUN |
| 인증: | ISO,CE |
| 모델 번호: | ZPS |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 나무 케이스 |
| 배달 시간: | 7-15 작업 일 이내에 |
| 지불 조건: | L/C,D/A,D/P,T/T,MoneyGram,웨스턴 유니온 |
| 공급 능력: | 5000set/년 |
| 기능: | Screening\separation\sorting\sieving | 핵심 단어: | 진동 화면 |
|---|---|---|---|
| 유지: | 쉽고 저렴 한 방법 | 재료: | 스테인레스 스틸 |
| 스크리닝 크기 범위: | 1mm에서 100mm까지 | 보증: | 1년 |
| 메쉬 크기: | 2-500mesh | 지름: | 400-2000mm |
| 심사 청원: | 원형, 타원형 또는 선형 | 설치 방법: | 바닥 장착 또는 매달기 |
| 특별한 기능: | 먼지가 많고 저음 작동 | 맞춤형: | 지원하다 |
| 강조하다: | Vibratory screening machine for food processing,High accuracy vibratory screening machine,Reliable chemical grain screening machine |
||
Product description

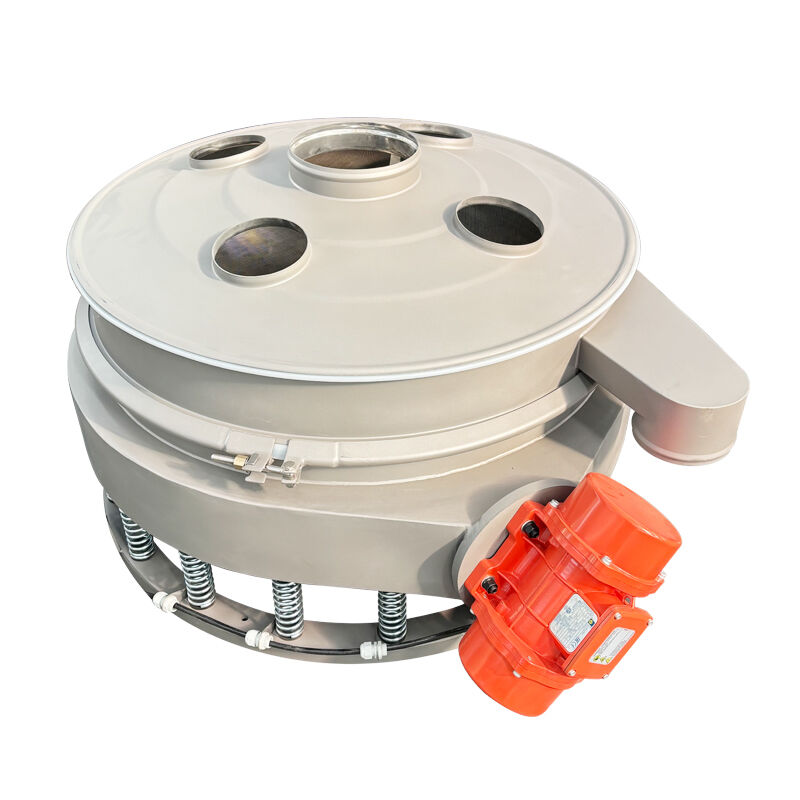

The straight-flow screen is an efficient screening equipment driven by two motors. Its unique direct discharge design enables the materials to be discharged in layers quickly and directly after screening, ensuring a continuous process without any retention. The equipment operates in a fully enclosed manner, effectively controlling dust and meeting the requirements of clean production. The core contact components are made of food-grade stainless steel, which is easy to clean and maintain, and can quickly adapt to different precision screening needs. This equipment is renowned for its stable operation, high screening efficiency, and large processing capacity. It is a reliable choice for particle classification and impurity removal in the food, chemical, and grain processing industries.
Working principle
The working principle of the inverted screen is based on its core dual-vibration motor drive. The two motors rotate in opposite directions synchronously, generating superimposed vertical excitation forces, which cause the screen to vibrate at a high frequency. After being fed from the top feed port, the materials quickly and evenly disperse on the surface of the screen mesh under the vibration effect. Fine particles quickly pass through the screen mesh under the action of vibration and gravity and are directly discharged from the lower fine material outlet; larger particles move along the screen surface and are discharged from the upper coarse material outlet. The entire process is continuous and automatic, achieving efficient and rapid screening and separation of the materials.
Product Features
Power structure: It adopts dual vibration motors for synchronous drive, with strong excitation force and stable operation.
Discharge method: The unique direct discharge design enables the coarse and fine materials after screening to be discharged directly and quickly from their respective outlets, with a simple and efficient path.
Sealing performance: The entire machine adopts a fully sealed structure, effectively preventing dust from spilling out during the screening process.
Hygiene and Adaptability: The main contact components are made of food-grade stainless steel, and are equipped with modular sieve frames that can be quickly replaced. This not only facilitates cleaning and maintenance but also enables flexible adjustment of the screening accuracy.
Product parameter
| Model | Power(kw) | Sieving diameter(mm) | Dimension(mm) |
| BZP-600 | 0.12 | 520 | 740*600*560 |
| BZP-800 | 0.18 | 720 | 1010*800*600 |
| BZP-1000 | 0.18 | 890 | 1200*970*640 |
| BZP-1200 | 0.25 | 1090 | 1430*1700*700 |
| BZP-1500 | 0.25 | 1390 | 1780*1470*760 |
| Machine can be customized based on your need | |||
