| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | EVERSUN |
| 인증: | ISO,CE |
| 모델 번호: | LDH |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 나무 케이스 |
| 배달 시간: | 7-15 작업 일 이내에 |
| 지불 조건: | L/C,D/A,D/P,T/T,MoneyGram,웨스턴 유니온 |
| 공급 능력: | 5000set/년 |
| 믹싱 방법: | 플러 믹서 | 재료: | 스테인레스 스틸 |
|---|---|---|---|
| 혼합 전력: | 1-50 KW | 유형: | 산업적 혼합 장치 |
| 어플리케이션: | 식품, 화학, 제약 산업 | 방전 방법: | 공압 밸브 |
| 온도 제어: | 온도조절기 | 안전 기능: | 비상 정지 버튼 |
| 제어 시스템: | PLC | 보증: | 1년 |
| 배출 유형: | 매뉴얼이거나 공기입니다 | 힘: | 1-100 kw |
| 강조하다: | industrial plow mixer for powders,plow mixer for granules dispersion,liquid mixing plow mixer industrial |
||
Product Description
The plough mixer is an efficient and versatile industrial mixing equipment, adept at handling various powders and particles including those with high viscosity. It achieves rapid and uniform mixing through a unique combination of plough blades and flying blades, and is particularly suitable for processes that require the addition of liquids or the handling of paste-like materials. It is widely used in fields such as chemical engineering, food, etc.
Working Principle
The working principle of the plough mixer is based on the synergy of its core components - the plough blade and the flying blade. The high-speed rotating plough blade forcefully throws the materials along the inner wall of the container, creating a wide range of circulation convection, achieving rapid mixing of the main materials. At the same time, an optional high-speed flying blade group can shear and disperse the material lumps, providing a strong local dispersion effect. The combination of the two enables different types of materials to reach a highly uniform mixing state within a short period of time, especially meeting the requirements for mixing with liquids or high viscosity.
Structural features

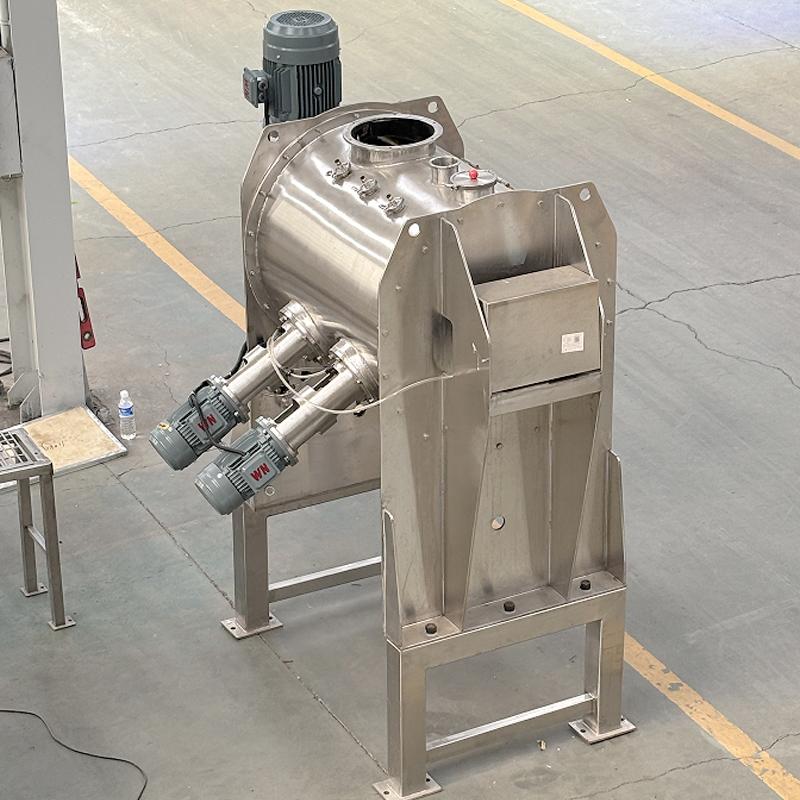

In terms of structural design, the plough mixer exhibits distinct functional characteristics. The U-shaped or trough-shaped cylinder is made of stainless steel with wear-resistant properties, and its inner wall is polished to reduce material adhesion. The top flange for feeding and the bottom butterfly valve for discharging achieve an automated process. The main shaft is equipped with multiple sets of wear-resistant plough blades, and the angles of the two sides' flying blades can be adjusted independently and driven separately. It is also paired with a high-strength alloy steel main shaft and a variable-frequency transmission system. Additionally, labyrinth seals or mechanical seals are combined with dust collection interfaces to effectively control dust leakage, meeting the clean production requirements of industries such as chemical and pharmaceuticals.
Product features
The main advantages of the plough mixer lie in its high efficiency, versatility and reliability. It achieves rapid and uniform mixing through a unique mechanical structure, excelling in handling a wide range of materials from dry powders to high-viscosity paste-like substances, and can easily handle solid-liquid mixing processes. The equipment has high mixing intensity, no dead corners, and the discharge is rapid and thorough. It is structurally sturdy and durable, demonstrating excellent applicability and stability in complex mixing requirements in the chemical, pharmaceutical and food industries.
Product Parameters
| Model | LDH-300 | LDH-1000 | LDH-2000 | LDH-3000 | LDH-4000 |
| Working volume(L) | 300 | 1000 | 150 | 200 | 4000 |
| Stirring speed(rpm) | 60 | 60 | 60 | 60 | 60 |
| Stirring motor(kw) | 5.5 | 11 | 22 | 30 | 37 |
| External dimensions(mm) | 1200*500*950 | 2300*980*1500 | 2900*1030*1750 | 3300*1150*1950 | 4000*1250*2200 |
| Weight(kg) | 520 | 1350 | 1910 | 2450 | 3020 |
Production line schematic diagram
Configuration A: Continuous vacuum feeder suction feeding → mixing → silo
Configuration B: Ton bag hoisting feeding → mixing → straight ton bag packaging
