| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | EVERSUN |
| 인증: | ISO,CE |
| 모델 번호: | DZSF |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 나무 케이스 |
| 배달 시간: | 7-15 작업 일 이내에 |
| 지불 조건: | L/C,D/A,D/P,T/T,MoneyGram,웨스턴 유니온 |
| 공급 능력: | 5000set/년 |
| 움직임: | 선의 | 용법: | 미세 입자 선별 |
|---|---|---|---|
| 오시슬레이션 각: | 45~60도 | 애플리케이션: | 미네랄 가공, 석탄, 화학 산업 |
| 예어: | 사각형 선형 스크린 진동기 | 작동 모드: | 오토매틱 |
| 색상: | 고객 요구 사항에 따라 | 구동 장치: | 진동 모터 |
| 재료: | 탄소강, SUS304, SUS316L | 기능: | 상영 |
| 스크린 소재: | 스테인레스 강 / 탄소강 |

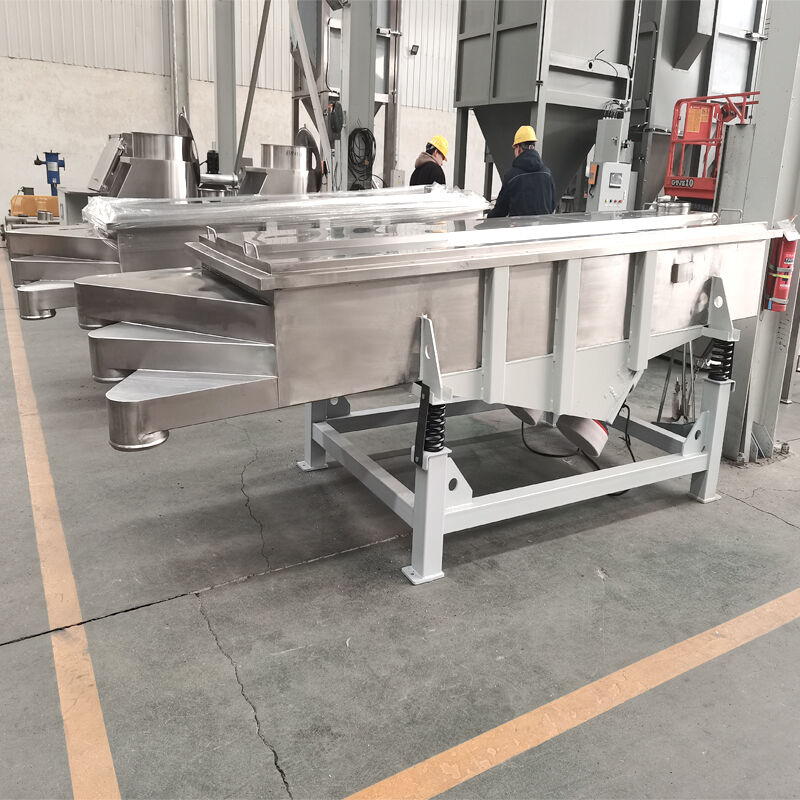

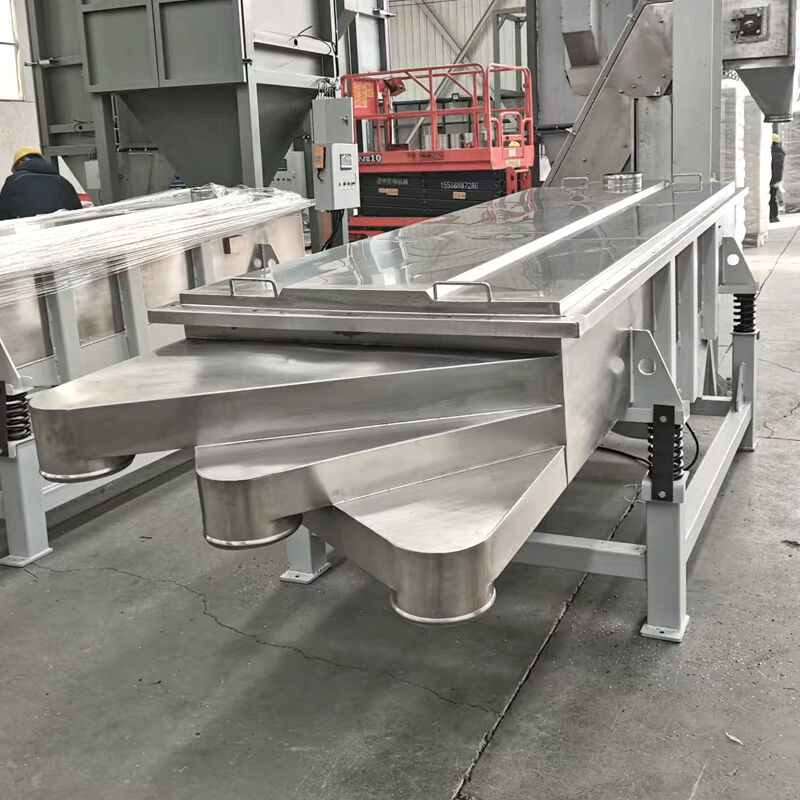

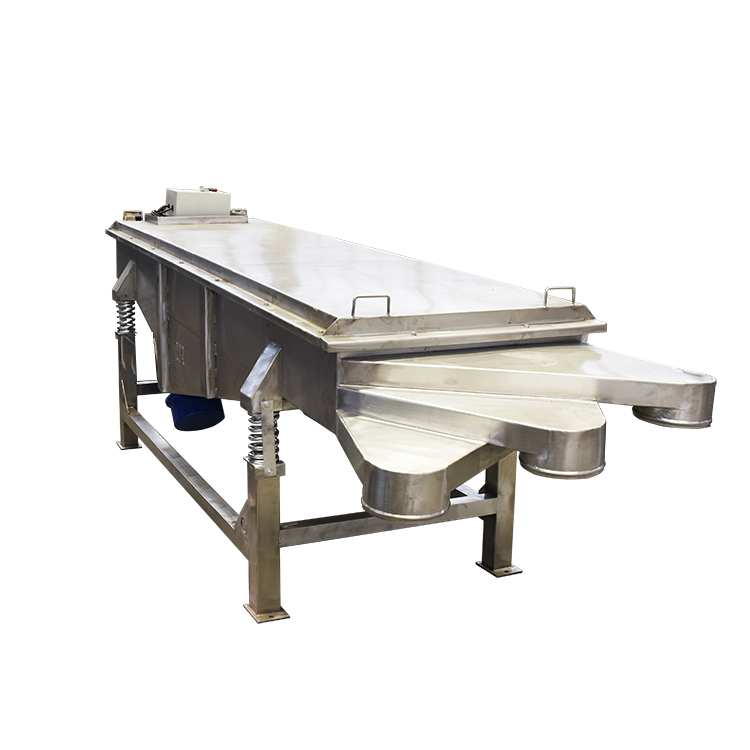

Product description
The straight screen is an efficient vibrating screening equipment. By installing screens of different mesh sizes, it can accurately perform automatic classification and impurity removal for powdery and granular materials, and is widely used in industries such as food and chemical.
Working principle
The linear screen utilizes two vibration motors as the excitation sources. These two motors rotate in opposite directions synchronously, and the excitation forces they generate cancel each other out in the horizontal direction while adding up in the vertical direction. This forces the screen box to drive the screen mesh to move in a straight line. After the materials enter the screen machine, under the action of the linear reciprocating motion, they jump forward. Materials smaller than the sieve holes pass through the screen mesh and fall down, achieving classification. While larger particles are discharged from the discharge port.
Product features
Large processing capacity: The material is conveyed quickly, and the processing capacity per unit time is outstanding.
Precise screening: The materials jump forward, and it is less likely to block the holes, resulting in excellent classification effect.
Sealed and environmentally friendly: The fully enclosed structure effectively prevents dust from spilling out.
Easy maintenance: The structure is simple, and it is easy to disassemble and replace the screen mesh.
Widely applicable: It can effectively handle various powdered and granular materials.
Product parameter
| Model | Screening Area(mm) |
Mesh size(mm) | Particle Size(mm) |
Capacity(t/h) | Power (kw) |
Double Amplitude(mm) |
| DZSF-612 | 600*1200 | 0.02-20 | ≤20 | ≤3 | 0.37×2 | 6 to 10 |
| DZSF-520 | 500*2000 | 0.02-20 | ≤20 | ≤5 | 0.37×2 | 6 to 10 |
| DZSF-525 | 500*2500 | 0.02-20 | ≤20 | ≤8 | 0.37×2 | 6 to 10 |
| DZSF-1020 | 1000*2000 | 0.02-20 | ≤20 | ≤12 | 0.75×2 | 6 to 10 |
| DZSF-1025 | 1000*2500 | 0.02-20 | ≤20 | ≤16 | 0.75×2 | 6 to 10 |
| DZSF-1030 | 1000*3000 | 0.02-20 | ≤20 | ≤20 | 1.1×2 | 6 to 10 |
| DZSF-1224 | 1200*2400 | 0.02-20 | ≤20 | ≤23 | 1.5×2 | 6 to 10 |
| DZSF-1525 | 1500*2500 | 0.02-20 | ≤20 | ≤28 | 1.5×2 | 6 to 10 |
| DZSF-1530 | 1500*3000 | 0.02-20 | ≤20 | ≤32 | 2.2×2 | 6 to 10 |
Production line diagram
1.Forklift filling the material into the storage hopper
2.A belt conveyor under the hopper, to transport the material to a linear vibrating screen
3.And another belt conveyor can transport the sieved material to other place
4.The belt conveyor can with dust cover and can add wheels
