| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | EVERSUN |
| 인증: | ISO,CE |
| 모델 번호: | eds |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 목재 케이스 |
| 배달 시간: | 7-15 일 이내에 |
| 지불 조건: | L/C,D/A,D/P,T/T,MoneyGram,웨스턴 유니온 |
| 공급 능력: | 5000 세트/년 |
| 모터: | 카파 코아 모터 | 전달 높이: | 8m 또는 주문 제작됩니다 |
|---|---|---|---|
| 무게: | 맞춤형 | 조정 가능한 각도: | ≤60 급 또는 90 급 |
| 설치: | 간단하고 빠른 설치 | 주요 기능: | 리프트 운반 |
| 배출 높이: | 맞춤형 | 본체 재질: | 탄소강, 스테인레스 Steel316L/304 |
| 여물통 유형: | u-trough 또는 관형 | 작업: | 마디 없는 |
| 핵심 단어: | 나사 컨베이어 | 특징: | 지속적인 작동, 유지 보수가 적고 청소하기 쉽습니다 |
| 용법: | 대량 재료를 전달합니다 |
Product description
Screw conveyors are compact and well-sealed continuous conveying equipment. They are widely used in various industrial production processes and can efficiently move powders, granules, and small block-shaped materials along a fixed path. With their flexible installation, simple operation, and small space occupation, these devices play a significant role in improving material flow efficiency and achieving automated production.
Working principle
The core working principle of a screw conveyor is to use the rotating spiral blades to push the materials to move in a directed manner.
The specific process is as follows: When the spiral shaft rotates within the closed material tank, the materials in the tank will be pushed by the spiral blades. Due to the material's own gravity and the friction between the material and the tank wall, the material does not rotate along with the spiral blades but moves linearly along the axial direction of the spiral shaft like a non-rotating nut, thereby being continuously transported from the feed port to the discharge port, completing the transportation process.
Product characteristics
Key features:
Compact structure: Low space occupancy.
Good sealing: Effective dust prevention.
Flexible layout: Can be installed horizontally, at an angle, or vertically.
Core advantages:
Efficient transportation: Achieve continuous and stable transportation.
Simple maintenance: Simple structure, easy to maintain.
Multi-functional: Can also have functions such as mixing and stirring.
Product parameter
|
||||||||||||||||||||||||
Production line diagram
1.The screw conveyor transport the mixed material from the ribbon mixer to a horizontal screw conveyor
2.The horizontal screw conveyor with 3 outlets, each outlet equip with a butterfly valve, when you need filling a bulk bag, just open that butterfly valve
3.The platform cam add weighing sensor if you need

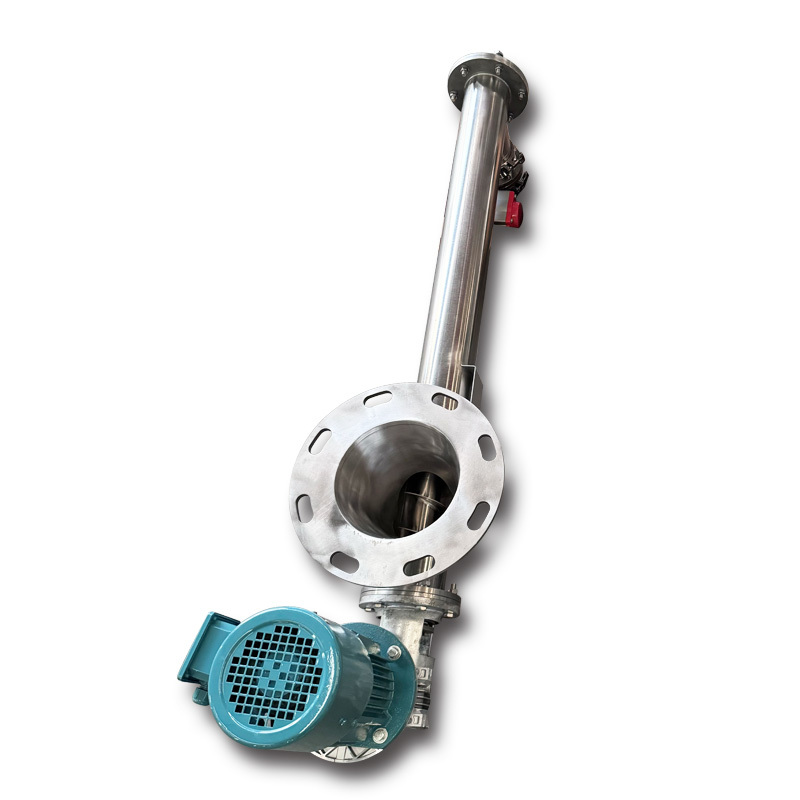

Product display

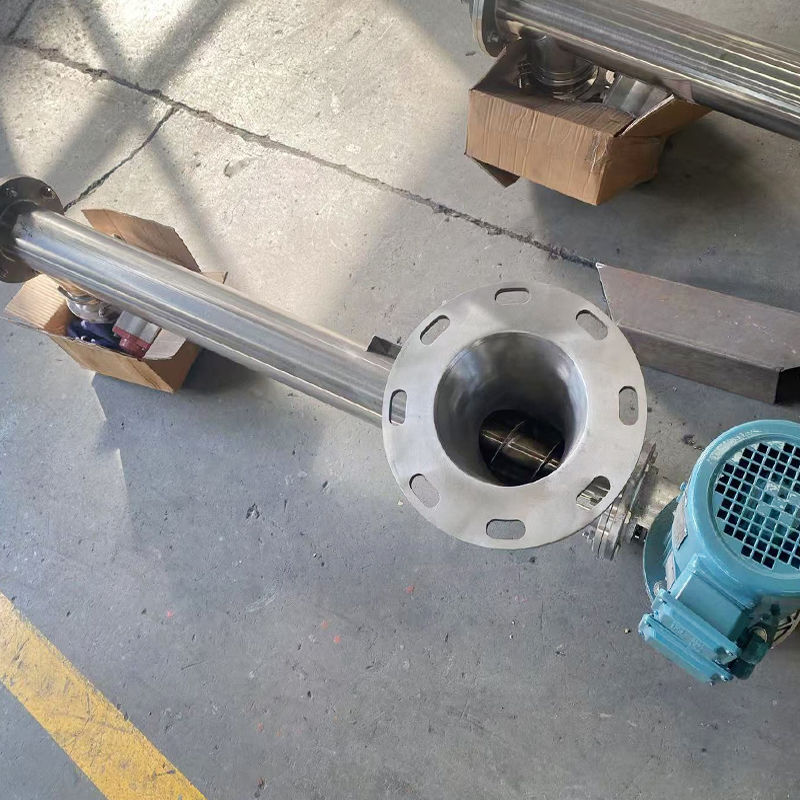

Product details
Product application
