| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | EVERSUN |
| 인증: | ISO,CE |
| 모델 번호: | EDS |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 나무 케이스 |
| 배달 시간: | 7-15 작업 일 이내에 |
| 지불 조건: | L/C,D/A,D/P,T/T,MoneyGram,웨스턴 유니온 |
| 공급 능력: | 5000set/년 |
| 모터: | 구리 코어 모터 | 운반 높이: | 8m 또는 맞춤형 |
|---|---|---|---|
| 무게: | 맞춤형 | 각도 조절 가능: | ≤60도 또는 90도 |
| 설치: | 간단하고 빠른 설치 | 주요 기능: | 리프트 운반 |
| 배출 높이: | 맞춤형 | 본체 재질: | 탄소강, 스테인레스 Steel316L/304 |
| 여물통 유형: | U-트로프 또는 관형 | 작업: | 마디 없는 |
| 핵심 단어: | 스크류 컨베이어 | 특징: | 지속적인 작동, 낮은 유지 관리, 손쉬운 청소 |
| 용법: | 대량 자재 운반 |
Product description
A screw conveyor is a continuous conveying equipment that uses rotating spiral blades to push materials. It has the advantages of compact structure, good sealing performance, and simple operation. It is suitable for conveying powdery, granular, and small block materials in horizontal, inclined, or vertical directions, and is widely used in industries such as grain, chemical, building materials, and metallurgy. This equipment is usually composed of components such as a drive unit, screw shaft, trough body, and inlet and outlet ports. It can be flexibly arranged according to process requirements, facilitating multi-point loading and unloading, and is an important conveying machinery for achieving process automation.
Working principle
The working principle of the screw conveyor is "forced advancement". The interaction force generated between the rotating screw blades and the materials overcomes the internal friction of the materials and the external friction with the slot walls, causing the materials to move continuously forward along the axial direction of the screw, just like a non-rotating nut moving along the screw. This enables continuous and directional transportation within the sealed tank.
Product characteristics
Compact structure, excellent sealing performance: The cross-sectional area of the equipment is small, allowing it to be installed in narrow spaces; the shell is sealed, which can effectively prevent dust from flying and environmental pollution, and is also convenient for transporting materials that are prone to dust, toxic or prone to deterioration.
2. Simple operation management: The structure is simple, making it easy to install, operate and maintain. The operating cost is also low.
3. Flexible transportation direction: It can be arranged horizontally, at an angle, or vertically, and can achieve multi-point feeding and multi-point discharging, with flexible process layout.
4. Stable and controllable transportation: The materials are continuously and evenly conveyed within the machine chamber, making it easy to adjust the transportation volume and control the process.
Product parameter
|
||||||||||||||||||||||||
Production line diagram
1.The screw conveyor transport the mixed material from the ribbon mixer to a horizontal screw conveyor
2.The horizontal screw conveyor with 3 outlets, each outlet equip with a butterfly valve, when you need filling a bulk bag, just open that butterfly valve
3.The platform cam add weighing sensor if you need

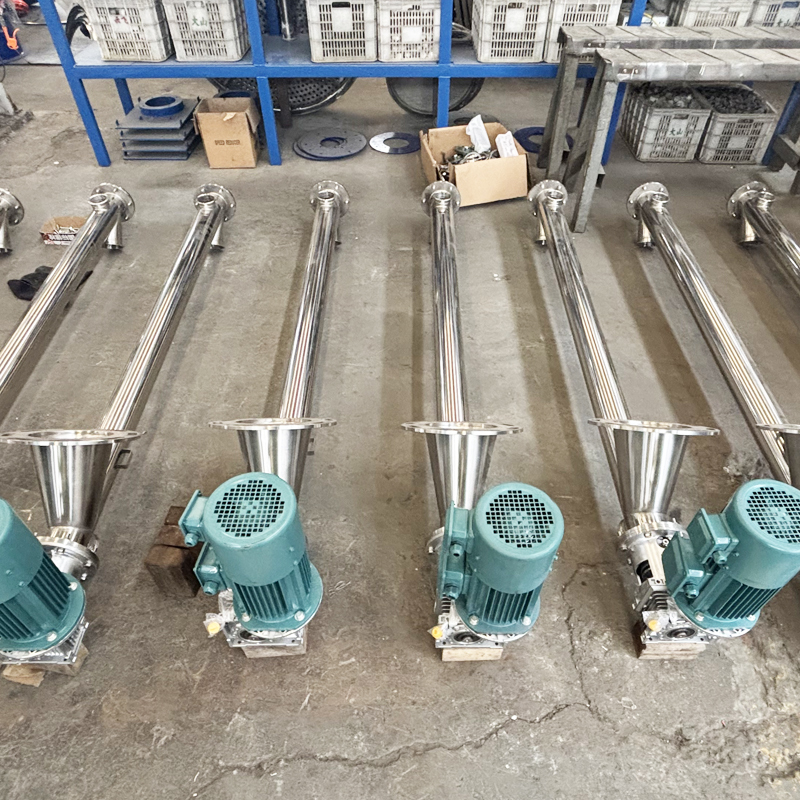

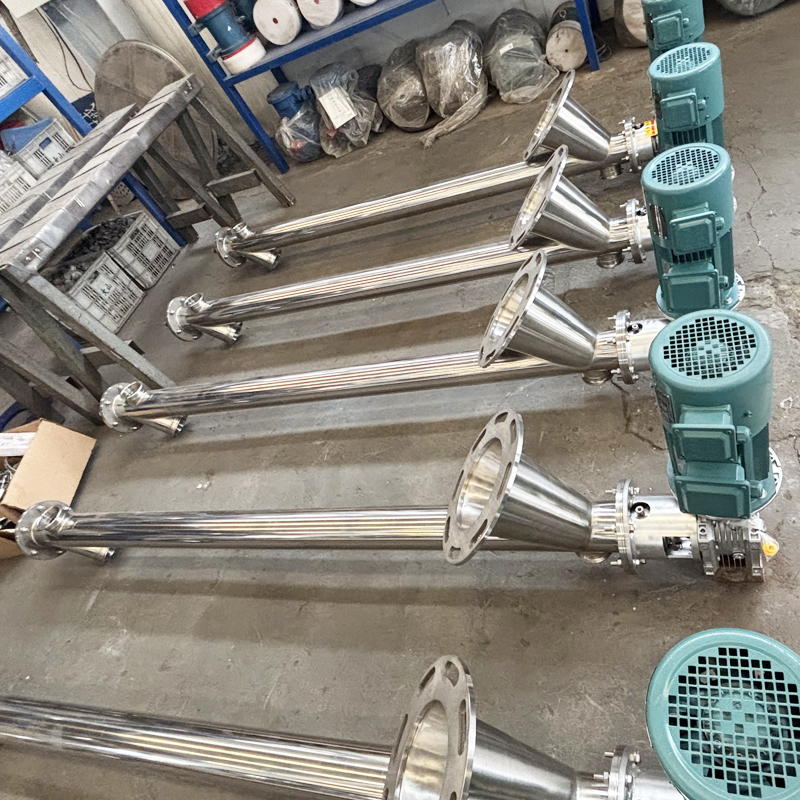

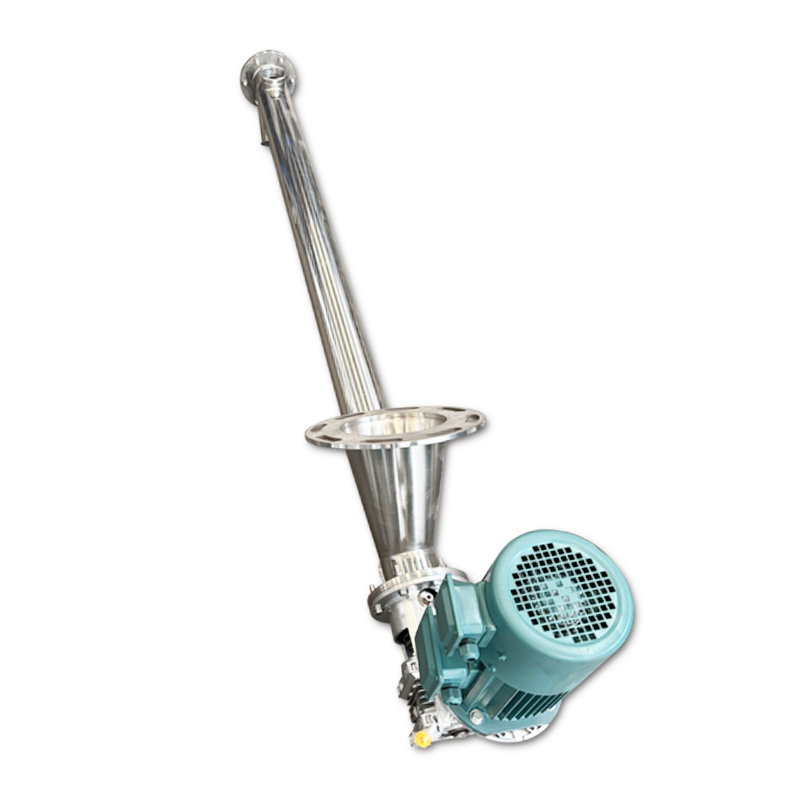

Product display
Product details
Product application
