| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | EVERSUN |
| 인증: | ISO,CE |
| 모델 번호: | eds |
| 최소 주문 수량: | 1 세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 목재 케이스 |
| 배달 시간: | 7-15 일 이내에 |
| 지불 조건: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| 공급 능력: | 5000 세트/년 |
| 모터: | 카파 코아 모터 | 전달 높이: | 8m 또는 주문 제작됩니다 |
|---|---|---|---|
| 무게: | 사용자 정의 | 조정 가능한 각도: | ≤60 급 또는 90 급 |
| 설치: | 간단하고 빠른 설치 | 주요 기능: | 리프트 운반 |
| 배출 높이: | 사용자 정의 | 신체 재료: | 탄소강, 스테인레스 Steel316L/304 |
| 여물통 유형: | u-trough 또는 관형 | 작업: | 마디 없는 |
| 핵심 단어: | 나사 컨베이어 | 특징: | 지속적인 작동, 유지 보수가 적고 청소하기 쉽습니다 |
Product description
A screw conveyor is a continuous conveying equipment that moves materials by means of rotating spiral blades. Its core components include spiral blades, the casing and the driving device.
It is suitable for transporting granular and powder materials. It can be transported horizontally, at an angle or vertically. The structure is compact and the space occupation is small. It is widely used in fields such as chemical industry, mining, and grain processing.
Working principle
The core working principle of a screw conveyor is that the driving device drives the spiral blades inside the casing to rotate. The helical surface of the blades will exert a continuous axial thrust on the materials, overcoming the friction between the materials and the casing as well as the blades, and smoothly transporting the materials from the feed port to the discharge port, thus achieving continuous conveying.
Product characteristics
1. Structure: Few core components, small size, low space occupation;
2. Conveying Function: Can be horizontally/vertically/vertically conveyed, suitable for various types of granular and powder materials;
3. Easy Maintenance: Stable operation, low failure rate, only need to check wear and lubrication daily;
4. Conveying Stability: Enclosed casing prevents dust, conveying capacity can be adjusted by speed.
Product parameter
|
||||||||||||||||||||||||
Production line diagram
1.The screw conveyor transport the mixed material from the ribbon mixer to a horizontal screw conveyor
2.The horizontal screw conveyor with 3 outlets, each outlet equip with a butterfly valve, when you need filling a bulk bag, just open that butterfly valve
3.The platform cam add weighing sensor if you need

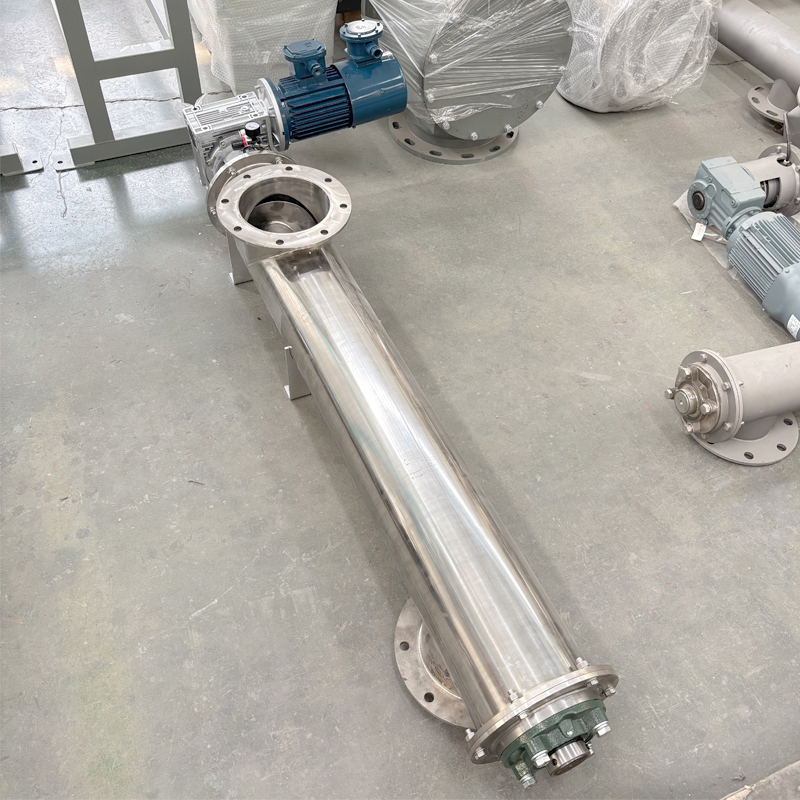

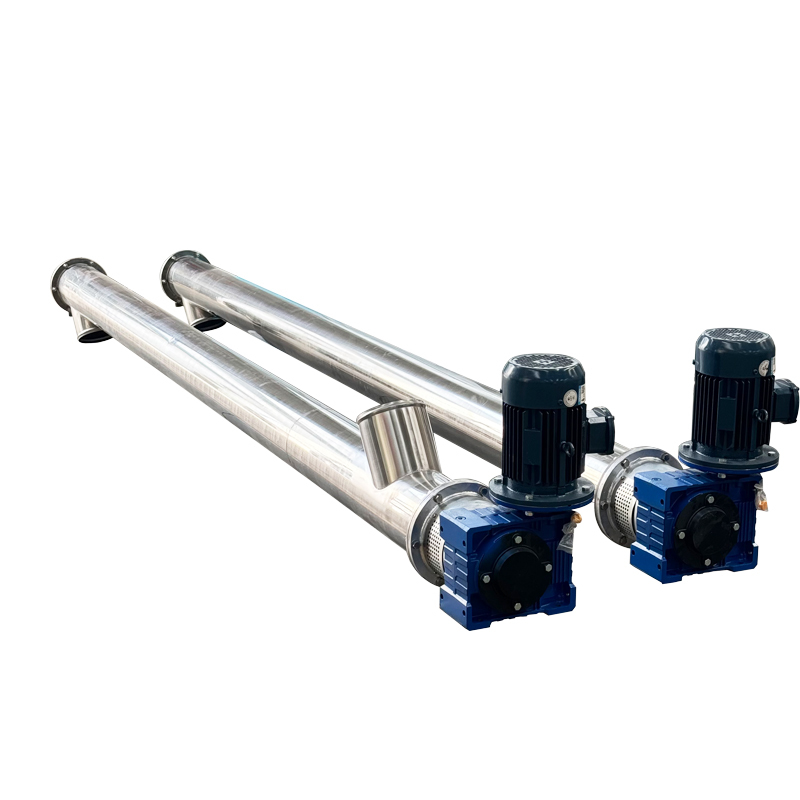

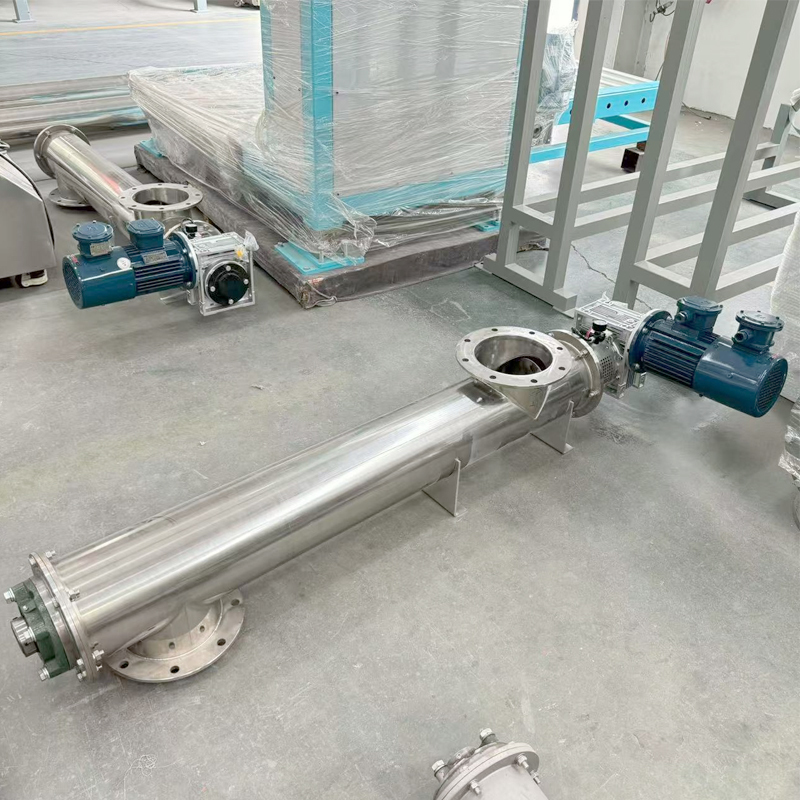

Product display
